Ball Joints
Suspensia ball joints highlight our precision engineering in suspension components. Every ball stud is CNC machined from high-grade micro alloy steels specifically selected for their exceptional strength-to-weight ratio and resistance to wear under extreme loads.
Overview
Ball joints are spherical bearings that connect the control arms to the steering knuckles. They are used on virtually every automobile.
A ball joint consists of a bearing stud and socket enclosed in a casing; all these parts aremade of steel. The bearing stud is tapered and threaded, and fits into a tapered hole in the steering knuckle. A protective encasing prevents dirt from getting into the joint assembly. Usually, this is a rubber-like boot that allows movement and expansion of lubricant. Motion-control ball joints tend to be retained with an internal spring, which helps to prevent vibration problems in the linkage.
Engineering Excellence
Our ball joints undergo rigorous testing in state-of-the-art laboratories to ensure they meet or exceed OE specifications. Each component is stress-tested under real-world conditions to guarantee product integrity at high loads and exceptional durability throughout its service life.

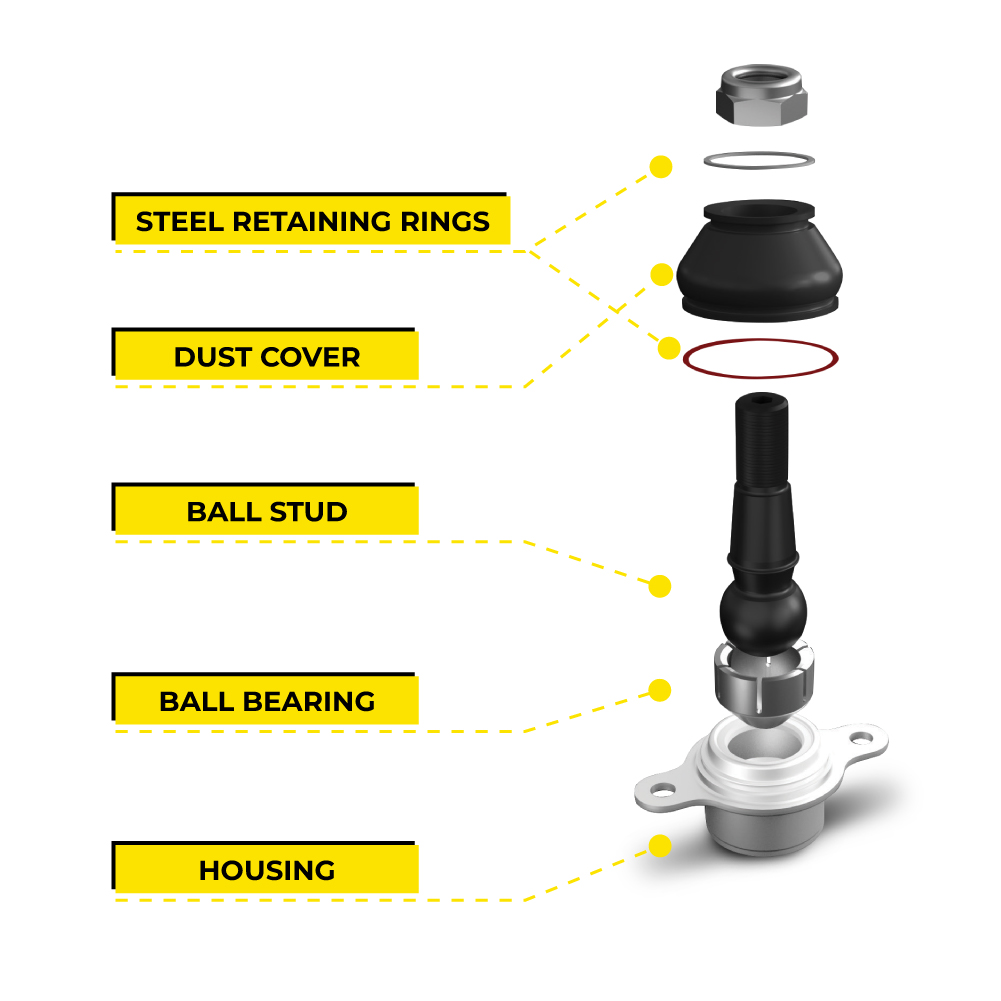

KEY FEATURES
- Steel Retaining Rings – Highly durable pre-stressing steel rings to ensure the dust cover is sealed from external contamiantors like wet, dust, mud, etc…
- Dust Cover – Made of CR Elastomer with excellent bending, sealing capabilities, resistant to cracks and designed to protect the ball joint from contamination (resistant to ozone and lubricating grease)
- Ball Stud – CNC machined to precision with lowest surface roughness, delivering better handling and comfort. Lubricated with high performance grease to reduce stick slip and improve product life. Made of SAE 5140 stell to meet highest force demands among all the components in the ball joint.
- Ball Bearing – DuPont™ Delrin® acetal resins provide low friction and high resistance to deformation in very challenging operating conditions.
- Housing – CNC-machined from high-grade microalloyed steel to ensure structural integrity under high load operating conditions.
APPLICATIONS
Suspensia ball joints are available for a wide range of vehicle applications, from compact cars to light trucks. Our extensive catalog includes both press-in and bolt-on designs, with or without integrated control arm assemblies.
direct from the manufacturer
Every Suspensia ball joint is manufactured in our IATF 16949 certified facility and backed by comprehensive warranty coverage. When safety and performance matter, trust the precision and quality that only a true manufacturer can deliver.
Frequently Asked Questions
How do I know if my ball joints need to be replaced?
Common signs include clunking or knocking noises from the front suspension, uneven tire wear, a loose or wandering steering feel, and vibration in the steering wheel. If your vehicle pulls to one side or your tires are wearing unevenly, worn ball joints are a likely culprit.
What's the difference between press-in and bolt-on ball joints?
Press-in ball joints require a hydraulic press to install and are typically found on older or heavy-duty vehicles. Bolt-on ball joints attach directly to the control arm with bolts, making them more DIY-friendly. Suspensia offers both configurations to match your vehicle’s original design.
Are Suspensia ball joints OE quality?
Yes. Suspensia ball joints are manufactured to OE production standards, meaning they meet or exceed the specifications of your original factory equipment — without the dealership price tag.
Do I need to replace both upper and lower ball joints at the same time?
It’s generally recommended to replace both upper and lower ball joints simultaneously, especially if the vehicle has significant mileage. Since they wear at similar rates, replacing one side often means the other is close behind. It also saves on labor costs.
Can I replace ball joints myself, or do I need a professional?
Bolt-on designs can be tackled by a confident DIYer with basic tools. Press-in ball joints typically require a press tool and alignment afterward, so professional installation is recommended for those. Either way, a four-wheel alignment should follow any ball joint replacement.
How long do ball joints typically last?
Most ball joints last between 70,000 and 150,000 miles, depending on driving conditions, road quality, and maintenance. Vehicles frequently driven on rough terrain or unpaved roads will see accelerated wear.
Are Suspensia ball joints available for my vehicle?
Suspensia offers coverage for a wide range of domestic, Asian, and European vehicles — from compact cars to light trucks. Check the product catalog with your year, make, and model to confirm fitment.
What makes Suspensia ball joints different from cheaper alternatives?
Suspensia ball joints use CNC-machined SAE 5140 steel studs, DuPont™ Delrin® acetal resin bearings for low friction, and CR Elastomer dust covers that resist ozone and lubricating grease. These are engineered for high-load performance, not just basic replacement duty.
Do Suspensia ball joints come pre-greased?
Yes. Suspensia ball joints are lubricated with high-performance grease at the factory to reduce stick-slip and extend service life right out of the box.
Will I need a wheel alignment after replacing my ball joints?
Yes — always. Ball joint replacement changes suspension geometry, and driving without a subsequent alignment will result in accelerated tire wear and compromised handling. Budget for an alignment when planning your repair.
What happens if I ignore worn ball joints?
A severely worn ball joint can separate entirely, causing sudden loss of steering control — a serious safety risk. Beyond that, continued driving on worn joints will damage tires, stress other suspension components, and increase overall repair costs.
Are Suspensia ball joints covered by a warranty?
Suspensia backs their components with a warranty that reflects their confidence in the engineering and materials. Check the product listing or contact Suspensia directly for warranty terms specific to your part.
